Product Description
COAIXAL RG59/RG6 WITH POWER CABLE
Coaxial Cable SERIES1,Siamese cable consists of two cables: RG59U/RG6U video cable and electrical cable all in one PVC jacketed cable. 2,This type cable is Ideal for composite video,RGBHV video,component video and even surveillance systems.3,All the wires you need to connect your camera are with in one cable.Therefore eliminating the need for two separate cables for the power and video.

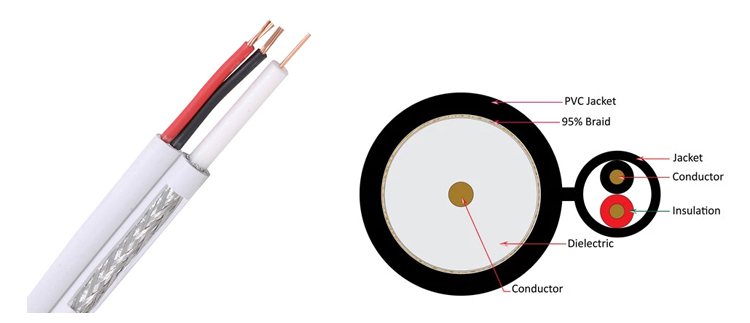

SIAMESE Coaxial WITH POWER CABLE
			RG6+2C	RG59+2C
Conductor	Material	BC/CCS
		Nom.Dia.	1.02+/-0.1mm	0.81+/-0.1mm
Dielectric	Material	Solid PE/Foam PE
		Nom.Dia.	4.8+/-0.1mm	3.66+/-0.1mm
Shield	Material	Al/BC/TC Braiding
		Coverage	40%~95%
Jacket	Material	PE/PVC/LSZH
		Nom.Dia.	6.8+/-0.2mm	6.0+/-0.2mm
Power Wires	Material	BC/CCA
		Size	0.3mm²/0.5mm²/0.75mm²

Characteristics:1,The coaxial cable is a common signal transmission line.
2,The copper core in the center transmits high level and is covered by insulating materials.
3,Outside the insulating material is a thin layer of tubular metal coaxial with copper core,which transmits low level and ACTS as shielding.

Type			RG59+2C	RG6+2C	RG11
Impedance(Ω)			75+/-3
SRL (≥dB)			20
Capacitance (pF/m)			53.1
Velocity of Propagarion			85%
Attenuation (≤dB/100m)	5MHz	2.91	2.00	1.44
		55MHz	6.73	5.25	3.20
		211MHz	12.47	10.00	6.23
		300MHz	14.60	11.64	7.38
		400MHz	16.73	13.61	8.53
		450MHz	17.72	14.43	9.02
		550MHz	19.52	16.08	9.97
		750MHz	22.87	18.54	11.97
		865MHz	24.67	20.01	13.05
		1000MHz	26.64	21.49	14.27

Related products OEM custom-made production according to different customer's request. Shape, PVC ,color, Conductor diameter, degree of tightness,logo design, Inner and Outer package design. Packaging & Shipping All packages are customized. Company Profile Our Services & Strength
1, Advanced test equipment,complete and strict quality test system;2, Full range of products,COAXIAL CABLE,Lan Cable,Security Cable,OPTIC FIBER CABLE and cable accessories etc;
3, Stable and short delivery time;
4, Perfect after-sales service. FAQ Q1: Are you a real manufacturer?
A: Yes, we are specialized in communication cables for more than 32 year’s.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: We accept T/T, L/C,more details can be negotiated.

Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.

Q5: What kind of certifications do you have?
A: We have passed UL, CPR, ETL, RoHS and ISO.

Q6: Do you have direct trading right?
A: Yes, we’re both manufacture and trading company about 12 years.

Q7: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 nkilometers, 2 million kilometers’ core and 600,000 boxes separately. Contact details
